在現代電力系統中，母線槽和配電柜是兩個至關重要的組成部分，它們之間的連接方式直接關系到電力傳輸?shù)男屎桶踩?。In modern power systems, bus ducts and power distribution cabinets are two crucial components. The connection method between them is directly related to the efficiency and safety of power transmission.

母線槽作為一種高效的電力傳輸設備，能夠?qū)㈦娔軓碾娫刺庉斔偷礁鱾€(gè)用電設備。而配電柜則負責對電能進行分配、控制和保護，確保電力系統的穩定運行。那么，母線槽和配電柜是如何連接的呢？As an efficient power transmission equipment, the bus duct can transport electrical energy from the power source to various electrical equipment. The power distribution cabinet is responsible for distributing, controlling, and protecting electrical energy to ensure the stable operation of the power system. So, how are bus ducts and power distribution cabinets connected?

首先，常見的連接方式之一是通過插接箱進行連接。插接箱安裝在母線槽上，通過電纜與配電柜的進線開關相連。這種連接方式具有安裝方便、靈活性高的特點。在安裝過程中，只需將插接箱插入母線槽的相應位置，然后將電纜連接到配電柜即可。同時，插接箱還可以根據實際需求進行移動和調整，方便進行電力分配的調整。First, one of the common connection methods is through a plug-in box. The plug-in box is installed on the bus duct and connected to the incoming switch of the power distribution cabinet through a cable. This connection method has the characteristics of convenient installation and high flexibility. During the installation process, only need to insert the plug-in box into the corresponding position of the bus duct, and then connect the cable to the power distribution cabinet. At the same time, the plug-in box can also be moved and adjusted according to actual needs to facilitate the adjustment of power distribution.

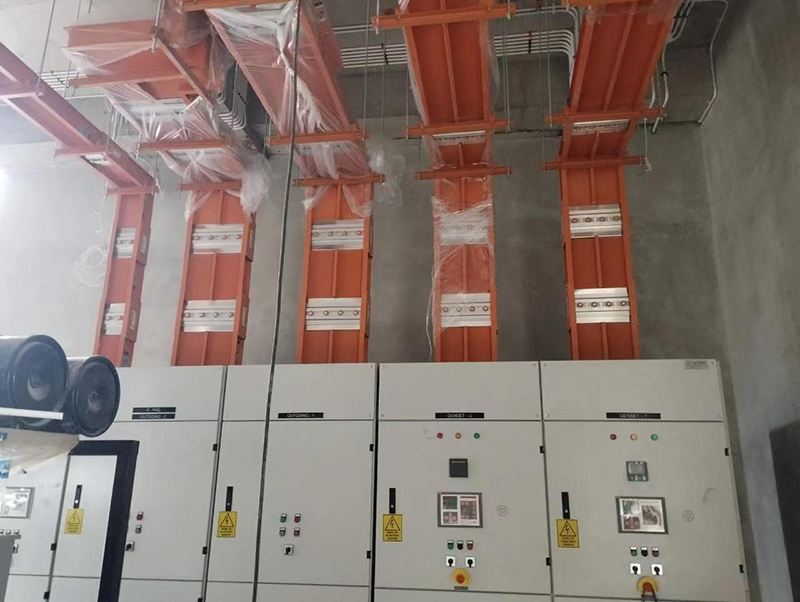

其次，直接連接也是一種常用的方式。在配電柜的頂部或底部設置進線口，將母線槽的連接端頭直接與配電柜的進線口進行對接。這種連接方式簡單直接，能夠減少中間環節，降低電能損耗。但是，直接連接對安裝精度要求較高，需要確保母線槽和配電柜的連接位置準確無誤，以保證良好的電氣接觸。Second, direct connection is also a commonly used method. An incoming line port is set at the top or bottom of the power distribution cabinet, and the connection end of the bus duct is directly docked with the incoming line port of the power distribution cabinet. This connection method is simple and direct, which can reduce intermediate links and reduce power loss. However, direct connection requires high installation accuracy. It is necessary to ensure that the connection position of the bus duct and the power distribution cabinet is accurate to ensure good electrical contact.

在連接過程中，還需要注意以下幾點：During the connection process, the following points need to be noted:

一是確保連接的牢固性。無論是插接箱連接還是直接連接，都需要保證連接部位緊密可靠，防止松動和接觸不良?？梢圆捎寐菟ňo固、焊接等方式，確保連接的穩定性。First, ensure the firmness of the connection. Whether it is connected by a plug-in box or directly connected, it is necessary to ensure that the connection part is tightly and reliably connected to prevent loosening and poor contact. Methods such as bolt fastening and welding can be used to ensure the stability of the connection.

二是做好電氣絕緣處理。母線槽和配電柜之間的連接部位需要進行良好的電氣絕緣處理，以防止漏電和短路事故的發生。可以使用絕緣套管、絕緣墊片等材料，提高連接部位的絕緣性能。Second, do a good job in electrical insulation treatment. The connection part between the bus duct and the power distribution cabinet needs to be subjected to good electrical insulation treatment to prevent the occurrence of leakage and short circuit accidents. Materials such as insulating sleeves and insulating gaskets can be used to improve the insulation performance of the connection part.

三是進行嚴格的電氣測試。在連接完成后，需要進行嚴格的電氣測試，包括絕緣電阻測試、耐壓測試等，確保連接后的電力系統符合安全標準。Third, conduct strict electrical tests. After the connection is completed, strict electrical tests need to be carried out, including insulation resistance tests and withstand voltage tests, to ensure that the connected power system meets safety standards.

總之，母線槽和配電柜的連接是電力傳輸?shù)年P(guān)鍵環節。通過合理選擇連接方式，并嚴格按照安裝要求進行操作，可以確保電力系統的高效、穩定運行，為人們的生產和生活提供可靠的電力保障。In short, the connection between bus ducts and power distribution cabinets is a key link in power transmission. By reasonably choosing the connection method and strictly operating in accordance with the installation requirements, the efficient and stable operation of the power system can be ensured and reliable power guarantee can be provided for people's production and life.
